The MSG TURBO-AIR 20000 is a custom-engineered centrifugal compressor built for individual customer needs for a variety of applications. It is particularly well-suited for multi-stage, dual-process applications.
Features
MSG? TURBO-AIR? INTEGRALLY GEARED CENTRIFUGAL COMPRESSORS
MSG TURBO-AIR compressors offer outstanding design flexibility. MSG compressors are application engineered with numerous available configurations:
Flows from 70 to 3800 m3/min (2500 to 135,000 CFM)
Input capacity to over 18,650 kW (25,000 hp)
Discharge pressures to 100 barg (1450 psig)
FEATURES
Prevents system contamination
Reduces the potential for compressed air pipeline fires caused by oil carryover
No costly waste disposal associated with oil-laden condensate
Eliminates the expense and maintenance of oil separation filters at the discharge
High Reliability
MSG TURBO-AIR centrifugal compressors are designed to be extremely
reliable due to:
Conservative high-quality gear design
Long-life pinion bearing design
Thrust loads absorbed at low speed
Stainless steel compression elements
Low Compressor Operating Life Cycle Cost
MSG TURBO-AIR centrifugal compressors provide better overall operating efficiency than positive displacement or other centrifugal compressors.
Excellent efficiencies at full load, part load and no load
Low maintenance cost
Increased uptime from high-reliability design (limits the need for multiple unit installations for basic reliability reasons)
No sliding or rubbing parts in the compression process that can cause wear and thereby efficiency loss
APPLICATIONS
Engineered Air Applications
Industrial gases
Instrument air
American Petroleum Institute (API) standards
Soot blowers
Large plant air
Power industry related
Gas Compressor Applications
Fuel gas boosting
Natural gas gathering
Hydrocarbon refrigeration gas
Carbon monoxide
CO2 (wet or dry)
SynGas
Low molecular weight recycle gas
High-pressure nitrogen
Landfill gas

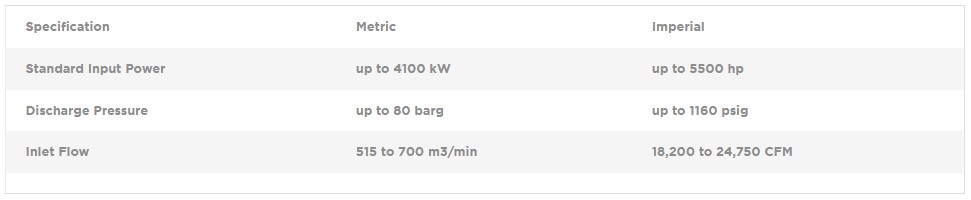

Model specifications
